The LM109K/883 is rated for operation from -55°C to 125°C, but it's recommended to derate the output voltage and current at higher temperatures to ensure reliability.
Yes, the LM109K/883 is a radiation-hardened device, making it suitable for high-reliability and aerospace applications. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with specific industry standards.
To ensure stability, follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and keep the input and output capacitors close to the device. Additionally, avoid using long input and output wires, and decouple the input with a capacitor (e.g., 10nF) to reduce noise.
The minimum input voltage required for the LM109K/883 to operate is 3.5V, but it's recommended to use a minimum input voltage of 4V to ensure proper operation and regulation.
Yes, the LM109K/883 can be used in switching power supply designs, but it's essential to follow proper design guidelines, including using a suitable output inductor, diode, and capacitor, as well as ensuring the device is properly bypassed and decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM109K/883 Overview

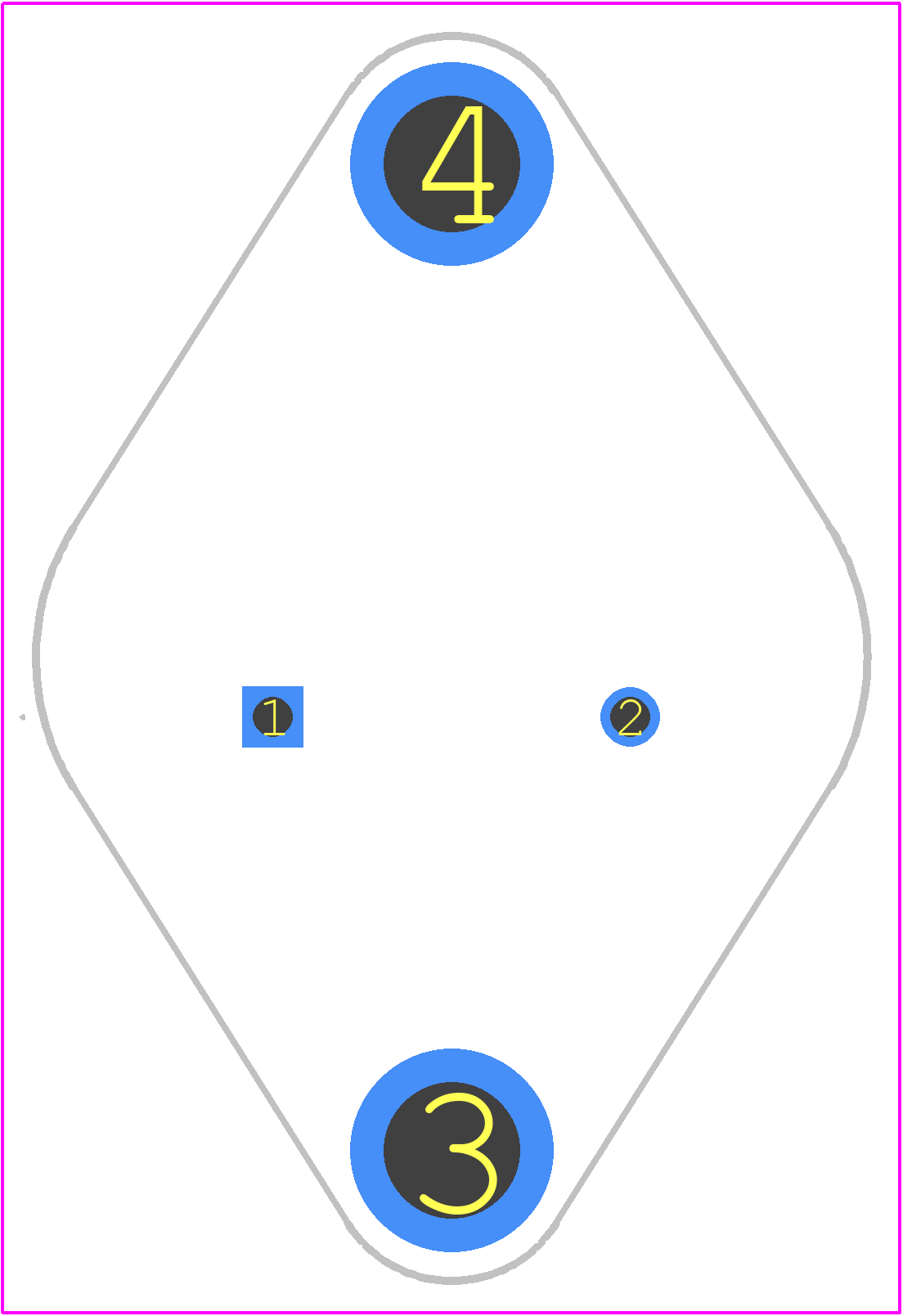

Use the download button to access the LM109K/883 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM109,
or try a keyword search, such as Linear Regulator ICs
