LM111HLQMLV - Texas Instruments

Description: 3-TERMINAL ADJUSTABLE REGULATOR

Download LM111HLQMLV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

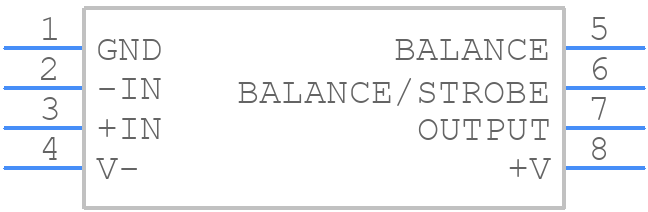

LM111HLQMLV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM111HLQMLV - Texas Instruments PCB footprint - Other - Other - TO254P914X530-8P
click to zoom
3D Models
LM111HLQMLV - Texas Instruments - 3D model - Other - TO254P914X530-8P
click to zoom

LM111HLQMLV Details

  • Manufacturer Part Number:

    LM111HLQMLV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-99

  • Pin Count:

    8

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.15 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    O-MBCY-W8

  • JESD-609 Code:

    e0

  • Length:

    9.08 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    TO-99

  • Package Equivalence Code:

    CAN8,.2

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    TRAY

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    200 ns

  • Screening Level:

    MIL-PRF-38535 Class V

  • Seated Height-Max:

    5.72 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    WIRE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    BOTTOM

  • Total Dose:

    50k Rad(Si) V

  • Width:

    9.08 mm

LM111HLQMLV Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias under the package to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet, and to ensure good thermal conduction between the device and the heat sink or PCB.
  • The LM111HLQMLV has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing, and to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines if necessary.
  • Yes, the LM111HLQMLV can be used in switching regulator applications, but it is recommended to ensure that the device is operated within its specified frequency range and that the output voltage is properly filtered to prevent oscillations.
  • To troubleshoot oscillations or instability issues, check the PCB layout for proper decoupling and bypassing, ensure that the input and output capacitors are properly selected, and verify that the device is operated within its specified frequency range and output current range.
