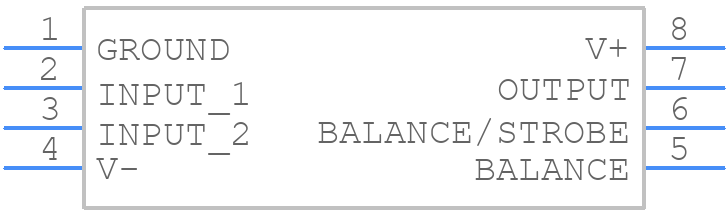

LM111J-8LQMLV - Texas Instruments

LM111J-8LQMLV Details

• Manufacturer Part Number:

  LM111J-8LQMLV

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Amplifier Type:

  COMPARATOR

• Average Bias Current-Max (IIB):

  0.15 µA

• Bias Current-Max (IIB) @25C:

  0.1 µA

• Input Offset Voltage-Max:

  3000 µV

• JESD-30 Code:

  R-GDIP-T8

• JESD-609 Code:

  e0

• Length:

  10.16 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Type:

  OPEN-COLLECTOR; OPEN-DRAIN

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Qualification Status:

  Not Qualified

• Response Time-Nom:

  200 ns

• Screening Level:

  MIL-PRF-38535 Class V

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  6 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Dose:

  50k Rad(Si) V

• Width:

  7.62 mm
