A good PCB layout for the LM119WGRLQMLV involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, connect the output pin to a resistive load, and use a voltage divider to set the output voltage to the desired level. The input pin should be biased to a voltage that is within the recommended range, typically around 2.5V.
The maximum power dissipation of the LM119WGRLQMLV is 1.4W. However, this value can be affected by the operating temperature, PCB layout, and other factors. It's essential to perform thermal analysis and ensure proper heat sinking to prevent overheating.
The LM119WGRLQMLV is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to perform thermal analysis and ensure proper heat sinking to prevent overheating. Additionally, consider using a device with a higher temperature rating if the application requires it.
To troubleshoot issues with the LM119WGRLQMLV, start by checking the power supply voltage, input signal, and output load. Verify that the device is properly biased and that the input signal is within the recommended range. Use an oscilloscope to check the output waveform and look for signs of oscillation or distortion. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM119WGRLQMLV Overview

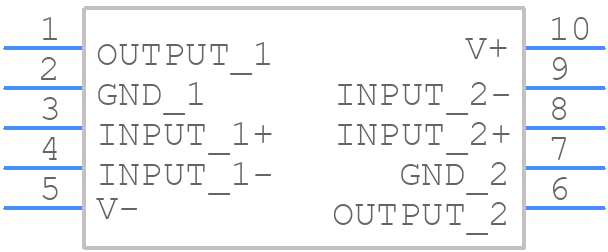

Use the download button to access the LM119WGRLQMLV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM119,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
