LM138K - STMicroelectronics

Description: IC REG LINEAR POS ADJ 5A TO3

Download LM138K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

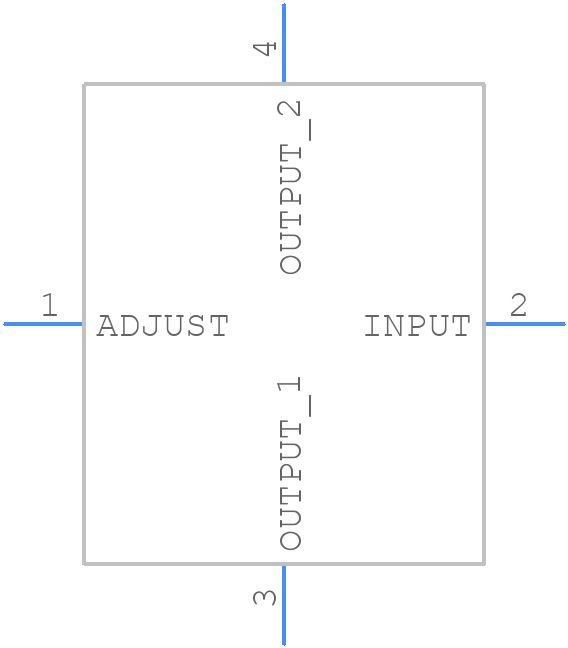

Symbol
LM138K - STMicroelectronics - PCB symbol
click to zoom

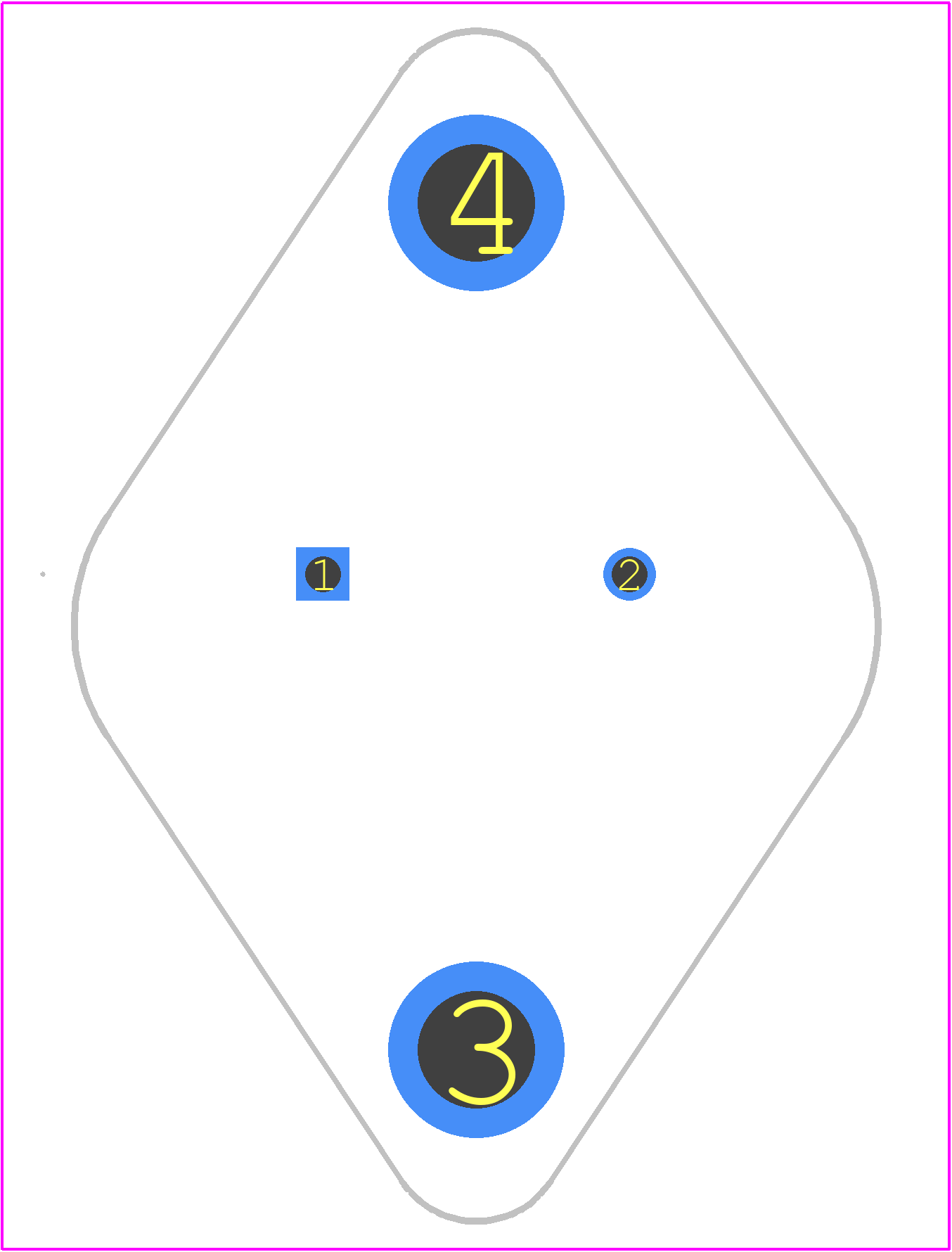

PCB Footprints
LM138K - STMicroelectronics PCB footprint - Other - Other - LM138K-3
click to zoom
3D Models
LM138K - STMicroelectronics - 3D model - Other - LM138K-3
click to zoom

LM138K Details

  • Manufacturer Part Number:

    LM138K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-204AA

  • Package Description:

    METAL CAN, TO-3, 2 PIN

  • Pin Count:

    2

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    3 V

  • Input-Output Voltage Differential-Max:

    35 V

  • Input-Output Voltage Differential-Min:

    3 V

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e3

  • Line Regulation-Max (%/V):

    0.01

  • Load Regulation-Max(%):

    0.3%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    2

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    32 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    METAL

  • Package Code:

    BFM

  • Package Equivalence Code:

    TO-204/-3

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

LM138K Frequently Asked Questions (FAQs)

  • The LM138K can handle input voltages up to 35V, but it's recommended to keep it below 25V for optimal performance and to prevent overheating.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR (Equivalent Series Resistance) of 5 ohms. Also, keep the input and output capacitors close to the regulator to minimize parasitic inductance.
  • The LM138K requires a minimum input voltage of 2V above the output voltage to regulate properly. For example, if you're using the 5V version, the input voltage should be at least 7V.
  • The LM138K is rated for operation up to 125°C, but its performance may degrade at high temperatures. Make sure to derate the output current and input voltage according to the datasheet's thermal derating curves.
  • Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input to protect the LM138K from voltage transients and spikes. This will help prevent damage to the regulator and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM138K Overview

Use the download button to access the LM138K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM138, or try a keyword search, such as Linear Regulator ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
