LM140K-12 - Texas Instruments

LM140K-12 Details

• Manufacturer Part Number:

  LM140K-12

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Active

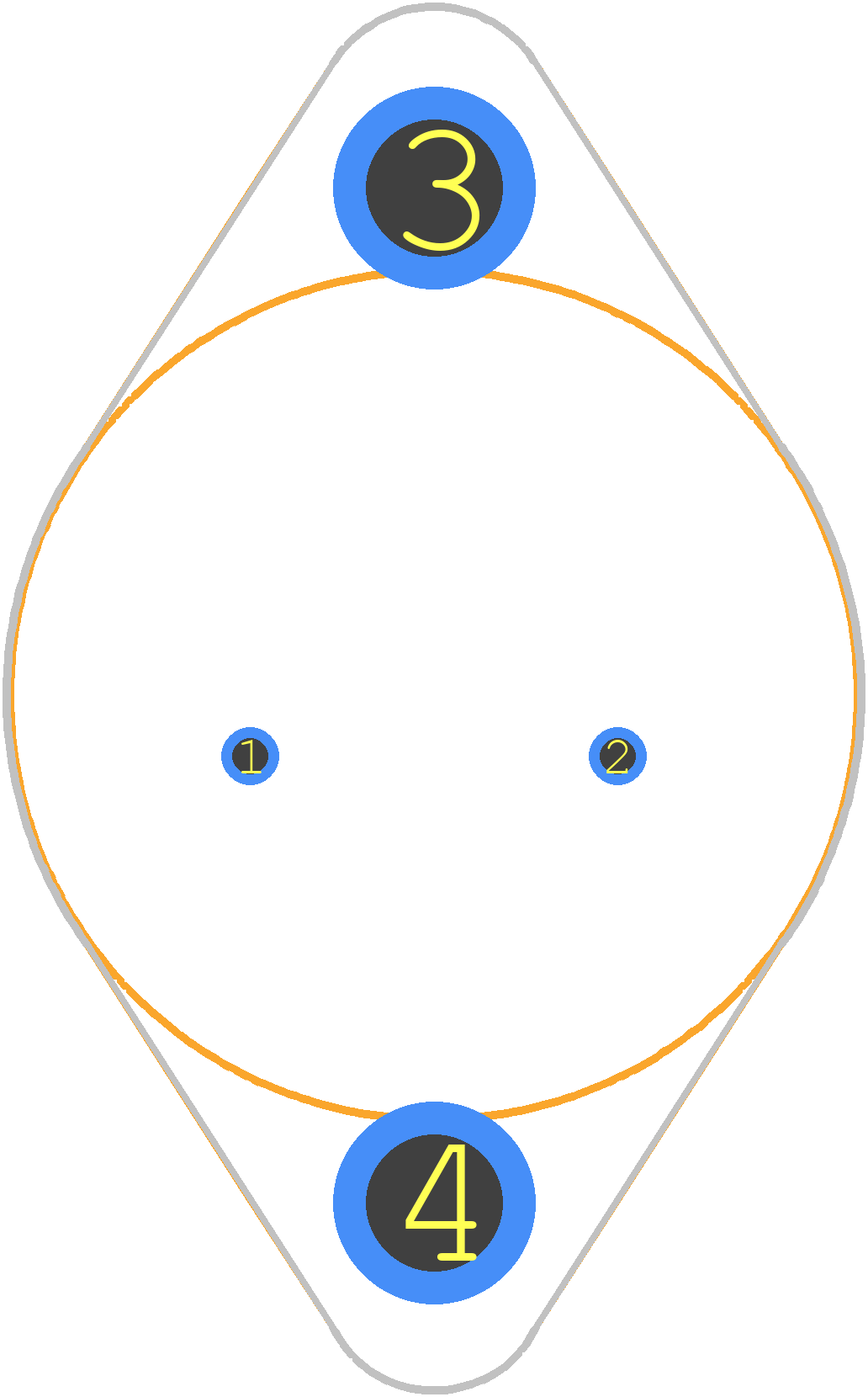

• Part Package Code:

  TO-204AA

• Pin Count:

  2

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  FIXED

• Dropout Voltage1-Nom:

  2.5 V

• Input Voltage Absolute-Max:

  35 V

• Input Voltage-Max:

  35 V

• Input Voltage-Min:

  14.5 V

• JESD-30 Code:

  O-MBFM-P2

• Length:

  38.94 mm

• Line Regulation-Max:

  0.03%

• Load Regulation-Max:

  0.06%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  2

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -55 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  12.6 V

• Output Voltage1-Min:

  11.4 V

• Output Voltage1-Nom:

  12 V

• Package Body Material:

  METAL

• Package Code:

  TO-3

• Package Equivalence Code:

  TO-204/-3

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TRAY

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

• Seated Height-Max:

  8.94 mm

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Voltage Tolerance-Max:

  4.17%

• Width:

  25.4 mm
