A good PCB layout for the LM1815MX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply lines and to use a low-impedance power source.
The maximum power dissipation of the LM1815MX is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.8W at 50°C ambient temperature.
Yes, the LM1815MX can be used in switching power supply applications. However, it's essential to ensure that the device is properly bypassed and decoupled to prevent high-frequency noise from affecting the device's operation. Additionally, the device's output should be filtered to prevent high-frequency noise from being transmitted to the load.
To protect the LM1815MX from overvoltage and overcurrent conditions, it's recommended to use a voltage regulator with overvoltage protection and a current limiter. Additionally, consider using a fuse or a polyfuse to protect against overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM1815MX/NOPB Overview

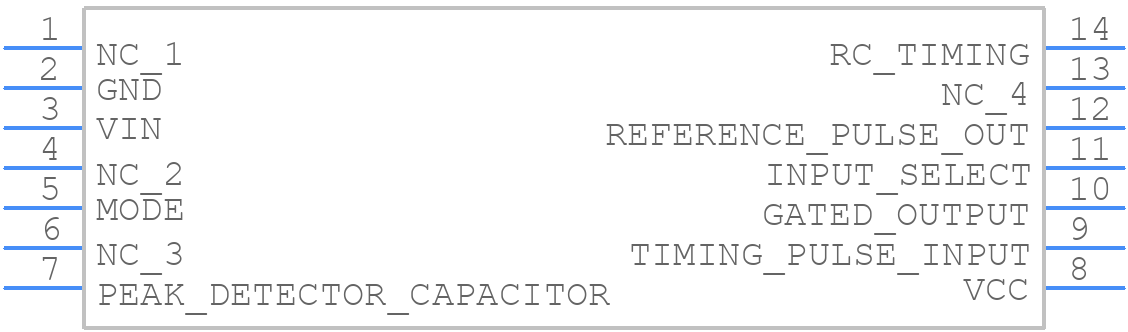

Use the download button to access the LM1815MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM181,
or try a keyword search, such as Other Signal Circuits
