- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM18293N
- Part Number LM18293N
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

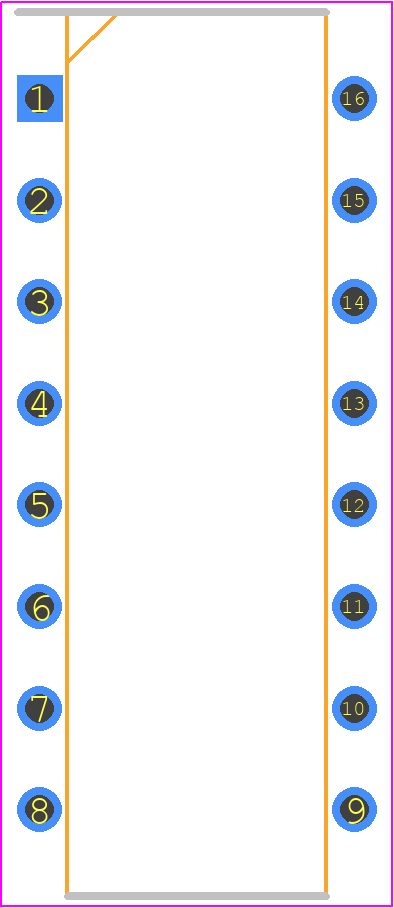

- Footprint Name Dual-In-Line Packages - N16A
- Released Date Nov 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM18293N Details
-
Manufacturer Part Number:
LM18293N
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP, DIP16,.3
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Built-in Protections:
THERMAL
-
Driver Number of Bits:
4
LM18293N Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM18293N is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
To ensure the stability of the output voltage, it's essential to use a minimum output capacitance of 10uF and an ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of less than 1 ohm.
-
The maximum output current that the LM18293N can provide is 1A, but it's recommended to keep it below 500mA for optimal performance and to prevent overheating.
-
To protect the LM18293N from overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the input voltage and output current within the recommended limits.
-
The LM18293N is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
LM18293N Overview

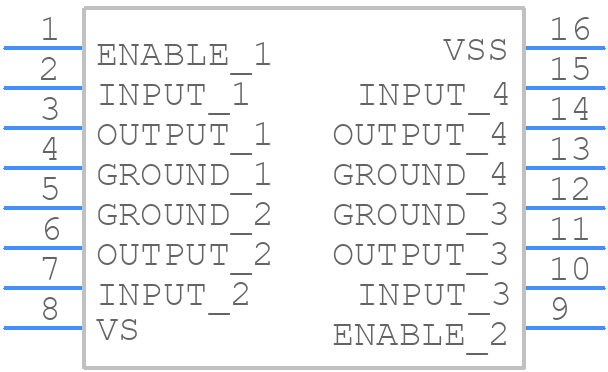

Use the download button to access the LM18293N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM182,
or try a keyword search, such as Peripheral Drivers
