LM1881M - Texas Instruments

Description: TEXAS INSTRUMENTS - LM1881M - IC, VIDEO SYNC SEPARATOR, 5V, SOIC-8

Download LM1881M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

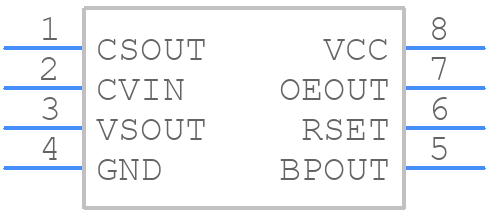

LM1881M - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM1881M - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM1881M - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM1881M Details

  • Manufacturer Part Number:

    LM1881M

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1993-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    SYNC SEPARATOR IC
