- Part Number LM1881MX
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D0008A
- Released Date Apr 30, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM1881MX Details
-
Manufacturer Part Number:
LM1881MX
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, SOP-8
-
Pin Count:
8
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Consumer IC Type:
SYNC SEPARATOR IC
-
JESD-30 Code:
R-PDSO-G8
LM1881MX Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the LM1881MX is 4.75V to 12V, although it can operate up to 15V with reduced performance.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, connect the GND pin to a low-impedance ground plane.
-
The maximum input signal amplitude that the LM1881MX can handle is 2Vpp (peak-to-peak) for a 1Vrms (root-mean-square) output. Exceeding this may cause distortion or clipping.
-
No, the LM1881MX is designed for analog audio signals and is not suitable for digital signal transmission. It may not provide the necessary bandwidth, rise time, or signal integrity for digital signals.
-
To reduce noise and hum, use a well-regulated power supply, decouple the VCC pin with a 0.1uF capacitor, and use a low-noise, high-impedance input source. Additionally, consider using a shielded cable and a grounded metal enclosure.
Trust Checks
Community Provided
System Verified
Community Approved
LM1881MX Overview

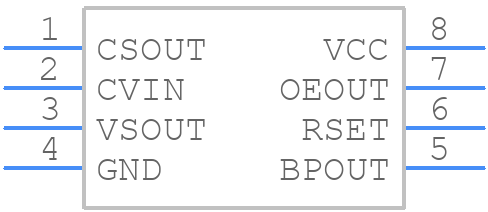

Use the download button to access the LM1881MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM188,
or try a keyword search, such as Signal Separator ICs
