Texas Instruments recommends a star-grounded layout, with the analog and digital grounds separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce EMI.
The value of Ccomp depends on the output capacitor (Cout) and the desired stability margin. A general rule of thumb is to choose Ccomp = 10-20 times Cout. However, it's recommended to consult the application notes and perform simulations to determine the optimal value for your specific design.
The maximum allowed input voltage for the LM1949N is 42V. Exceeding this voltage can cause internal damage and affect the device's performance, including increased power consumption and reduced output voltage regulation. It's essential to ensure that the input voltage remains within the recommended range to maintain optimal performance and reliability.
During startup, the LM1949N has a soft-start feature that ramps up the output voltage to prevent inrush currents. However, it's essential to ensure that the input voltage is stable and within the recommended range before enabling the device. Additionally, consider the power-up sequencing of other components in your design to prevent voltage glitches and ensure reliable operation.
The LM1949N has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the device away from heat sources. Additionally, consider the thermal resistance of the PCB and the ambient temperature to ensure that the device operates within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM1949N Overview

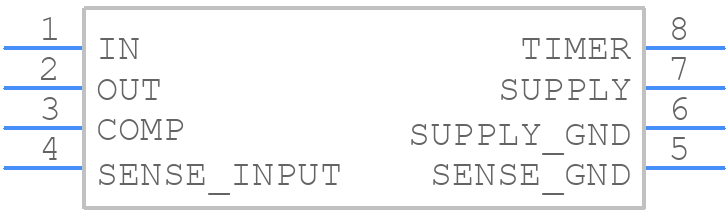

Use the download button to access the LM1949N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM194,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
