SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1500 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM20123MHE/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure stability in the output voltage, it's essential to follow the recommended capacitor values and types, as well as the PCB layout guidelines. Additionally, the input voltage should be well-regulated, and the output capacitor should be placed close to the device.
The maximum input voltage that can be applied to the LM20123MHE/NOPB is 42V, but it's recommended to operate the device within the specified input voltage range (3.5V to 36V) for optimal performance and reliability.
The LM20123MHE/NOPB is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
To troubleshoot issues with the LM20123MHE/NOPB, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact TI's support team if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM20123MHE/NOPB Overview

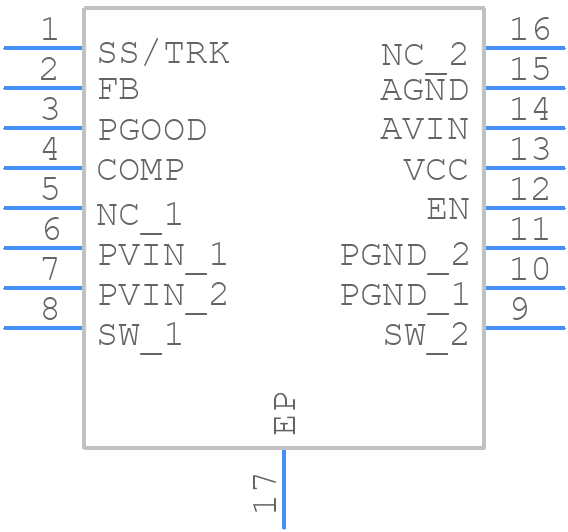

Use the download button to access the LM20123MHE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM201,
or try a keyword search, such as Switching Regulator or Controllers
