LM20123MHX/NOPB - Texas Instruments

Description: 2.95-5.5V, 3A, Current Mode Synchronous Buck Regulator with Optional Automotive Grade

Download LM20123MHX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

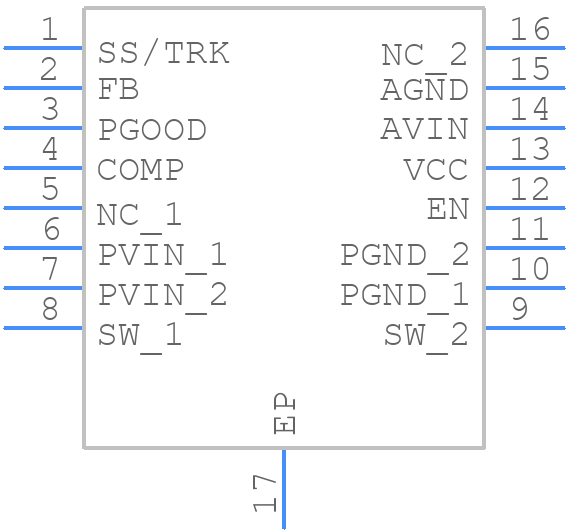

LM20123MHX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM20123MHX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016A PowerPAD HTSSOP - 1.2 mm max height
click to zoom
3D Models
LM20123MHX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0016A PowerPAD HTSSOP - 1.2 mm max height
click to zoom

LM20123MHX/NOPB Details

  • Manufacturer Part Number:

    LM20123MHX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.95 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM20123MHX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM20123MHX/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
  • To ensure stability, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is placed close to the output pin.
  • The LM20123MHX/NOPB can handle input voltages up to 42V, but it's recommended to operate within the specified input voltage range (3.5V to 36V) for optimal performance and reliability.
  • The LM20123MHX/NOPB is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current draw. Check the PCB layout, component selection, and thermal design. Use oscilloscopes and thermal imaging cameras to identify potential issues. Consult the datasheet and TI's application notes for guidance.
