A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure stability in the output voltage, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, the output capacitor's ESR (Equivalent Series Resistance) should be within the recommended range to prevent oscillations.
While the datasheet specifies a maximum input voltage of 42V, it's essential to consider the maximum voltage rating of the specific package and the operating conditions. In general, it's recommended to derate the input voltage by 10-15% to ensure reliable operation.
To protect the device from overcurrent and overheating, it's recommended to add overcurrent protection (OCP) and overtemperature protection (OTP) circuits. The datasheet provides some guidance on OCP and OTP, but additional external components may be required for more robust protection.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value between 1-10uF. The exact value depends on the input voltage, output voltage, and desired ripple rejection. A higher value capacitor can provide better ripple rejection but may increase the startup time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM20154MH/NOPB Overview

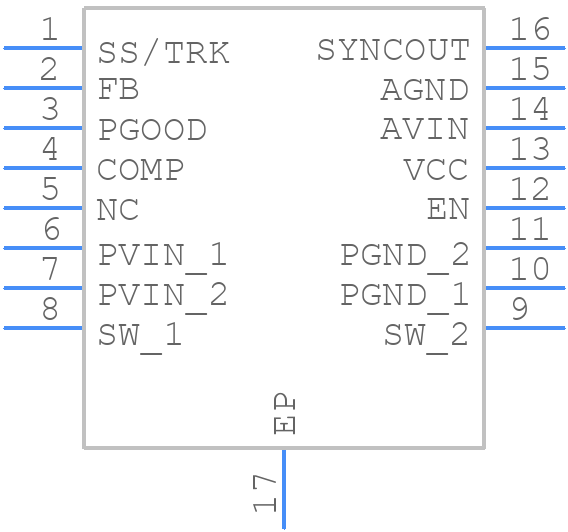

Use the download button to access the LM20154MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM201,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
