Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, consider adding a small resistor (e.g., 10 ohms) in series with the output capacitor to dampen any potential oscillations.
While the datasheet specifies a maximum input voltage of 42V, it's recommended to derate the input voltage to 36V to ensure reliable operation and to account for any voltage spikes or transients.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal performance, so it's best to stick with the recommended values.
The LM20323MHE/NOPB has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal vias to dissipate heat. Additionally, consider using a heat sink or a thermal interface material to further improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM20323MHE/NOPB Overview

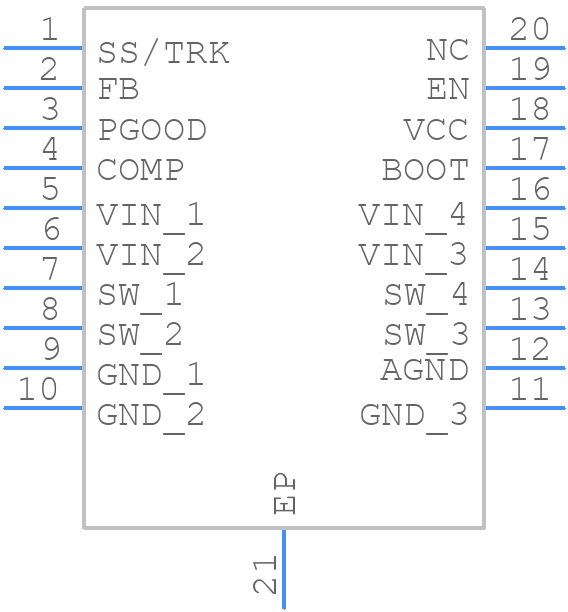

Use the download button to access the LM20323MHE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM203,
or try a keyword search, such as Switching Regulator or Controllers
