A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure a stable and accurate output voltage, it's essential to follow the recommended capacitor selection and placement guidelines, as well as to decouple the input and output with suitable capacitors. Additionally, the output voltage can be trimmed using the TRIM pin.
While the datasheet specifies a maximum input voltage of 42V, it's essential to consider the maximum voltage rating of the specific package and the operating conditions. In general, it's recommended to keep the input voltage below 40V to ensure reliable operation.
The LM20333MHX/NOPB has built-in overcurrent protection, but it's still essential to add external protection mechanisms, such as fuses or current-limiting resistors, to prevent damage from excessive current. Additionally, ensuring good airflow and a suitable thermal design can help prevent overheating.
While the LM20333MHX/NOPB is a high-performance device, it's essential to evaluate its suitability for high-reliability or automotive applications. TI provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP documentation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM20333MHX/NOPB Overview

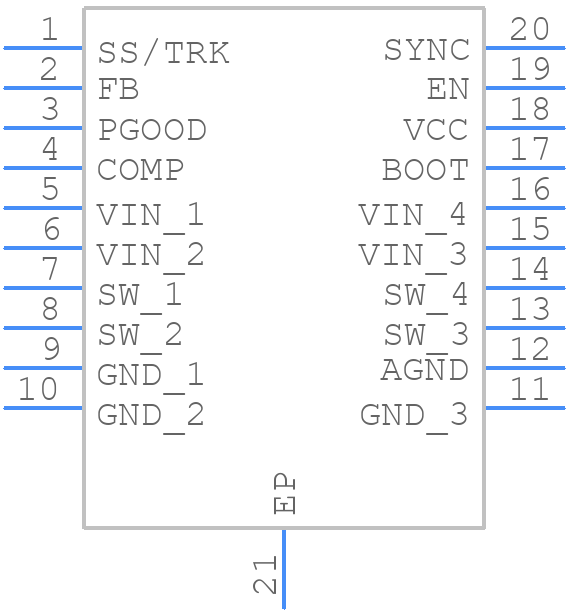

Use the download button to access the LM20333MHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM203,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
