LM20343MHE/NOPB - Texas Instruments

Description: 4.5-36V, 3A Current Mode Synchronous Buck Regulator with Adjustable Frequency

Download LM20343MHE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

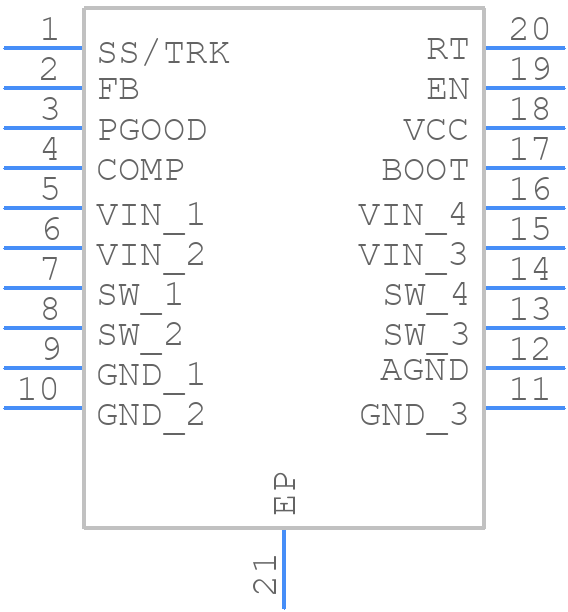

LM20343MHE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM20343MHE/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020A
click to zoom
3D Models
LM20343MHE/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0020A
click to zoom

LM20343MHE/NOPB Details

  • Manufacturer Part Number:

    LM20343MHE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.8 TO 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    32 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    5.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM20343MHE/NOPB Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink if possible. Refer to the Texas Instruments application note 'Thermal Design By Example' for more information.
  • To ensure a stable and accurate output voltage, make sure to use a high-quality output capacitor with low ESR, and follow the recommended capacitor selection guidelines in the datasheet. Additionally, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum input voltage that can be applied to the LM20343MHE/NOPB is 42V. Exceeding this voltage may cause damage to the device.
  • The LM20343MHE/NOPB has built-in overcurrent protection and thermal shutdown. However, it's still important to add external protection such as fuses or PTC resistors to prevent damage from excessive current or voltage. Additionally, ensure good airflow and a proper heat sink design to prevent overheating.
  • Yes, the LM20343MHE/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
