Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for op-amp layout, such as keeping the input and output traces separate, using a ground plane, and minimizing trace lengths. Additionally, it's recommended to place the device close to the signal source and use a low-impedance power supply.
The input bias current of the LM211QDG4 is typically around 25 nA, which can cause a voltage drop across the input impedance. To handle this, it's recommended to use a high-impedance input source, such as a voltage divider or a buffer amplifier. If not handled properly, the input bias current can cause errors in the output signal, especially in high-gain applications.
The LM211QDG4 can drive a maximum capacitive load of around 100 pF, depending on the gain and frequency of the application. Exceeding this limit can cause the amplifier to oscillate or become unstable. To ensure stability, it's recommended to use a series resistor with the capacitive load or to add a compensation capacitor to the feedback network.
When the input common-mode voltage exceeds the specified range, the LM211QDG4 may exhibit reduced performance, such as increased distortion or decreased gain. In extreme cases, exceeding the common-mode voltage range can cause the amplifier to latch up or become damaged. It's essential to ensure that the input common-mode voltage remains within the specified range to maintain optimal performance and prevent damage to the device.
A recommended power supply decoupling scheme for the LM211QDG4 includes using a 10 uF capacitor in parallel with a 100 nF capacitor, both connected between the power supply pins and ground. This scheme helps to reduce noise and ripple on the power supply lines, which can affect the performance of the amplifier. Proper power supply decoupling is essential to ensure low noise and distortion in the output signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM211QDG4 Overview

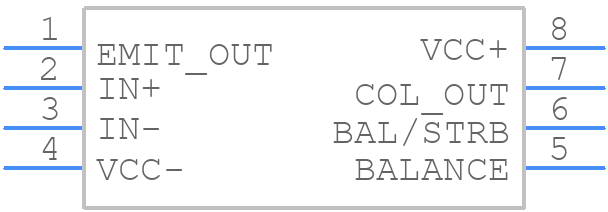

Use the download button to access the LM211QDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM211,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
