A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure a stable and accurate output voltage, it's essential to follow the recommended capacitor selection and placement guidelines, and to ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the feedback resistors, and the device's internal voltage reference can be bypassed for improved accuracy.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's essential to ensure that the device is operated within the specified temperature range to prevent overheating and ensure reliable operation.
To troubleshoot issues with the device, start by verifying that the input voltage and output voltage are within the specified ranges. Check the PCB layout for any potential issues, such as poor grounding or inadequate decoupling. Use an oscilloscope to observe the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
The LM21215AMHX-1/NOPB is a commercial-grade device, but TI offers other versions of the device that are specifically designed for high-reliability or aerospace applications. These devices have undergone additional testing and screening to ensure their suitability for these demanding applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM21215AMHX-1/NOPB Overview

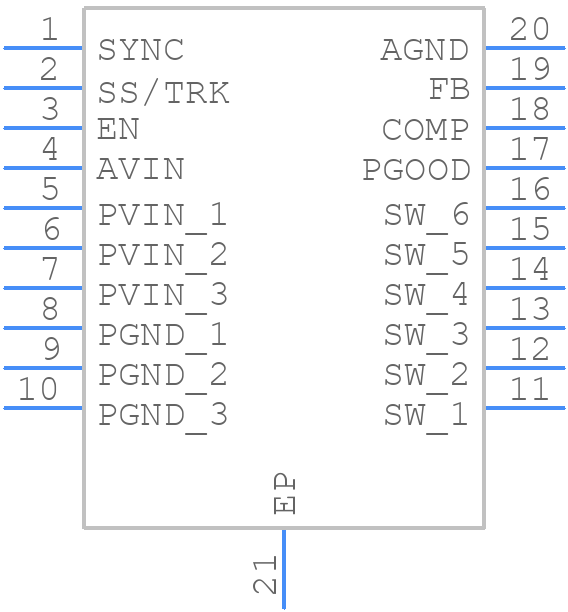

Use the download button to access the LM21215AMHX-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM212,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
