A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, using a low-ESR output capacitor and a high-quality input capacitor can help prevent oscillations.
While the datasheet specifies a maximum input voltage of 15V, it's essential to note that the device can withstand up to 18V for short durations (less than 100ms) without damage. However, it's recommended to operate the device within the specified maximum input voltage to ensure reliability.
The LM21305SQE/NOPB is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. A heat sink or thermal pad may be necessary to ensure reliable operation.
To troubleshoot issues with output voltage regulation, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout match the recommended design. If issues persist, consult the datasheet and application notes for guidance on debugging and troubleshooting.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM21305SQE/NOPB Overview

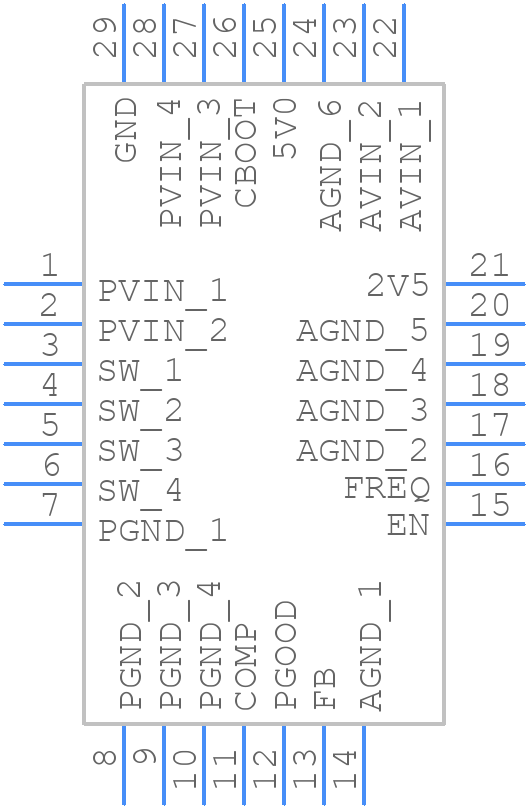

Use the download button to access the LM21305SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM213,
or try a keyword search, such as Switching Regulator or Controllers
