LM22670TJE-ADJ - Texas Instruments

Description: IC: PMIC; DC/DC converter; Uin: 4.5÷42VDC; Uout: 1.285÷37VDC; 3A

Download LM22670TJE-ADJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

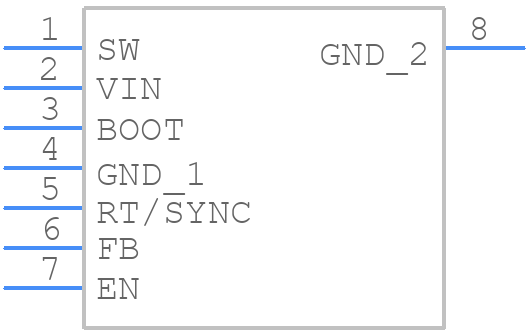

LM22670TJE-ADJ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM22670TJE-ADJ - Texas Instruments PCB footprint - Other - Other - LM22670TJE-ADJ-1
click to zoom

LM22670TJE-ADJ Details

  • Manufacturer Part Number:

    LM22670TJE-ADJ

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    D2PAK

  • Package Description:

    PLASTIC, TO-263, 7 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO HAS ADJUSTABLE OUTPUTS AS LOW AS 1.285V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSSO-G7

  • Length:

    10.16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.25 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    9.85 mm

LM22670TJE-ADJ Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM22670TJE-ADJ is 42V, but it's recommended to keep it below 40V for reliable operation.
  • The output voltage of the LM22670TJE-ADJ can be adjusted by connecting a resistor divider network between the output and the ADJ pin, and then connecting the center tap of the divider to the ADJ pin.
  • The minimum input voltage required for the LM22670TJE-ADJ to operate is 7.2V, but it's recommended to keep it above 8V for reliable operation.
  • The LM22670TJE-ADJ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • To protect the LM22670TJE-ADJ from input voltage transients, it's recommended to add a TVS diode or a transient voltage suppressor between the input and ground, and also to add a capacitor between the input and ground to filter out high-frequency noise.
