LM22677QTJE-5.0/NOPB - Texas Instruments

Description: Buck Switching Regulator IC Positive Fixed 5V 1 Output 5A TO-263-7 Thin

Download LM22677QTJE-5.0/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

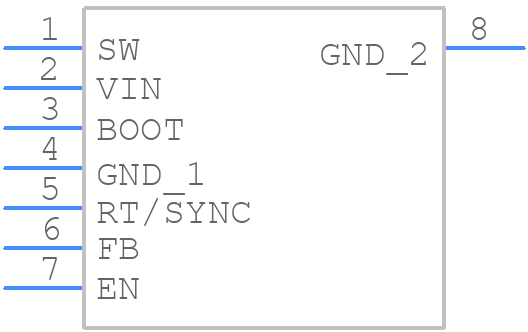

LM22677QTJE-5.0/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM22677QTJE-5.0/NOPB - Texas Instruments PCB footprint - Other - Other - NDR0007A_2025-2.2
click to zoom

LM22677QTJE-5.0/NOPB Details

  • Manufacturer Part Number:

    LM22677QTJE-5.0/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    1.285 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.25 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

LM22677QTJE-5.0/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM22677QTJE-5.0/NOPB is 42V, but it's recommended to keep it below 40V for reliable operation.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 22uF. Additionally, the input capacitor should be placed close to the VIN pin to reduce noise and improve stability.
  • The maximum output current that the LM22677QTJE-5.0/NOPB can deliver is 3A, but it's recommended to keep it below 2.5A for reliable operation and to prevent overheating.
  • The output voltage of the LM22677QTJE-5.0/NOPB can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 5.0V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The thermal shutdown temperature of the LM22677QTJE-5.0/NOPB is typically around 150°C, but it can vary depending on the specific device and operating conditions. When the device reaches this temperature, it will shut down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM22677QTJE-5.0/NOPB Overview

Use the download button to access the LM22677QTJE-5.0/NOPB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM226, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
