Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for op-amp layout, such as keeping the input and output traces separate, using a ground plane, and minimizing trace lengths. Additionally, it's recommended to place the device close to the signal sources and loads to reduce noise and parasitic capacitance.
The choice of resistors for the feedback network depends on the specific application and the desired gain. A good starting point is to use 1% or 0.1% tolerance resistors with a temperature coefficient of 25 ppm/°C or better. The resistor values should be chosen to achieve the desired gain and bandwidth, while also ensuring stability and minimizing noise. It's also important to consider the power rating and voltage rating of the resistors.
The maximum power dissipation of the LM239PWRG4 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a thermal resistance of 61.4°C/W for the PW package. To calculate the maximum power dissipation, you can use the formula: Pd = (Tj - Ta) / θja, where Pd is the power dissipation, Tj is the junction temperature, Ta is the ambient temperature, and θja is the thermal resistance. For example, at an ambient temperature of 25°C, the maximum power dissipation would be approximately 1.35W.
Yes, the LM239PWRG4 can be used as a comparator, but it's not optimized for this application. The key considerations are the input common-mode voltage range, the input offset voltage, and the output stage. The LM239PWRG4 has a limited input common-mode voltage range, which may not be suitable for all comparator applications. Additionally, the input offset voltage can affect the accuracy of the comparator, and the output stage may not be able to drive heavy loads. It's recommended to use a dedicated comparator device, such as the LM339, for comparator applications.
The LM239PWRG4 is a sensitive device and can be damaged by electrostatic discharge (ESD). To protect the device, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Additionally, it's recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output pins of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM239PWRG4 Overview

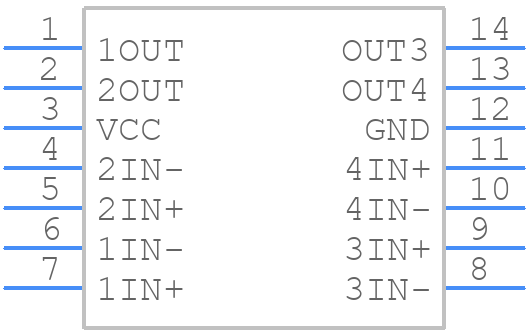

Use the download button to access the LM239PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM239,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
