A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure reliable start-up, make sure the input voltage rises monotonically and does not droop during start-up. Also, ensure that the input capacitor is properly sized to handle the inrush current. A soft-start circuit can also be used to reduce the inrush current.
The maximum allowed voltage on the enable pin is the same as the maximum input voltage, which is 42V. However, it's recommended to keep the enable voltage below 5.5V to ensure proper operation.
The LM25010Q1MH/NOPB is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to ensure reliable operation.
To troubleshoot issues with the output voltage regulation, check the input voltage, output voltage, and feedback voltage. Ensure that the feedback network is properly connected and that the output voltage is within the specified range. Also, check for any signs of overheating or excessive current draw.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25010Q1MH/NOPB Overview

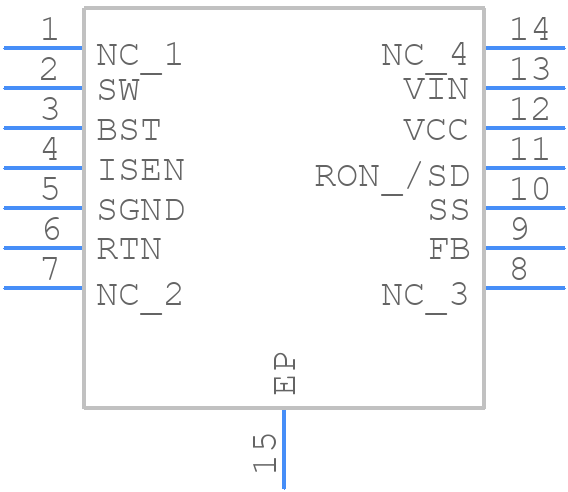

Use the download button to access the LM25010Q1MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Switching Regulator or Controllers
