Texas Instruments provides a recommended PCB layout in the LM25010Q1MHX/NOPB datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 2-ounce copper layer and to avoid routing high-current traces under the device.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range (-40°C to 150°C) and derated accordingly.
Exceeding the maximum junction temperature (150°C) can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. Prolonged operation above the maximum junction temperature can cause permanent damage to the device, leading to a decrease in its performance and lifespan.
The selection of input and output capacitors depends on the specific requirements of the application, including the input voltage, output voltage, and desired ripple and noise performance. Texas Instruments provides guidelines for capacitor selection in the LM25010Q1MHX/NOPB datasheet, including recommended capacitor values and types.
The LM25010Q1MHX/NOPB is designed to meet EMI and EMC requirements, but proper PCB layout and design are still essential to minimize electromagnetic interference. This includes using a solid ground plane, minimizing loop areas, and using shielding and filtering as necessary. Additionally, the device should be operated within its specified frequency range to minimize EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25010Q1MHX/NOPB Overview

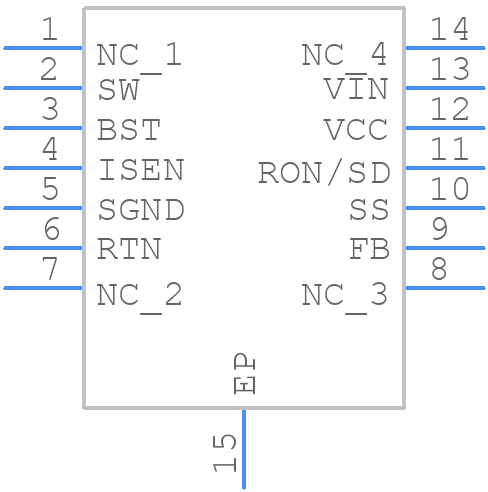

Use the download button to access the LM25010Q1MHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Switching Regulator or Controllers
