A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note (SLUA477) provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power sequencing and voltage ramp rates. The datasheet provides guidelines for power-up and power-down sequences, and application notes (such as SLUA478) provide additional guidance.
The critical components that affect the stability of the LM25011Q1MY/NOPB include the input and output capacitors, the inductor, and the feedback resistors. The datasheet provides recommended values and tolerances for these components, and application notes (such as SLUA479) provide additional guidance.
Optimizing the compensation network involves selecting the correct values for the compensation resistors and capacitors. The datasheet provides guidelines for selecting these components, and application notes (such as SLUA480) provide additional guidance.
Key considerations for EMI and EMC compliance include using a shielded inductor, minimizing loop areas, and using a common-mode choke. The datasheet provides some guidelines, and application notes (such as SLUA481) provide additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25011Q1MY/NOPB Overview

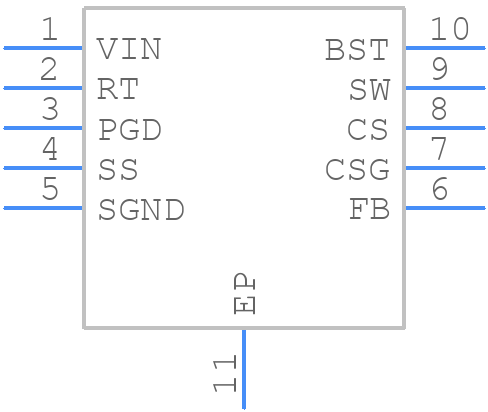

Use the download button to access the LM25011Q1MY/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Switching Regulator or Controllers
