LM25019SDE/NOPB - Texas Instruments

Description: 7.5-48V Wide Vin, 100mA Constant On-Time Synchronous Buck Regulator

Download LM25019SDE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

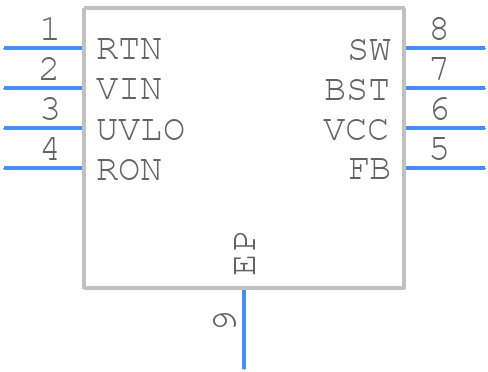

LM25019SDE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM25019SDE/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGU0008B
click to zoom
3D Models
LM25019SDE/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGU0008B
click to zoom

LM25019SDE/NOPB Details

  • Manufacturer Part Number:

    LM25019SDE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.225V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    CONSTANT ON TIME

  • Input Voltage-Max:

    48 V

  • Input Voltage-Min:

    7.5 V

  • Input Voltage-Nom:

    9 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LM25019SDE/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM25019SDE/NOPB is 42V, but it's recommended to keep it below 40V for reliable operation.
  • To ensure the LM25019SDE/NOPB operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high power dissipation during operation.
  • The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as X5R or X7R, to minimize voltage ripple and ensure stable operation.
  • Yes, the LM25019SDE/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the required specifications and standards.
  • To troubleshoot issues with the LM25019SDE/NOPB, check the input voltage, output load, and thermal conditions. Verify that the device is properly soldered and that the PCB layout meets the recommended guidelines. Use oscilloscopes and thermal imaging cameras to identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM25019SDE/NOPB Overview

Use the download button to access the LM25019SDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250, or try a keyword search, such as Switching Regulator or Controllers
