LM25085MYE - Texas Instruments

Description: TEXAS INSTRUMENTS - LM25085MYE - PFET Controller, Constant On-Time, 4.5V to 42V, 1 Output, Buck, 1MHz, MSOP-8

Download LM25085MYE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

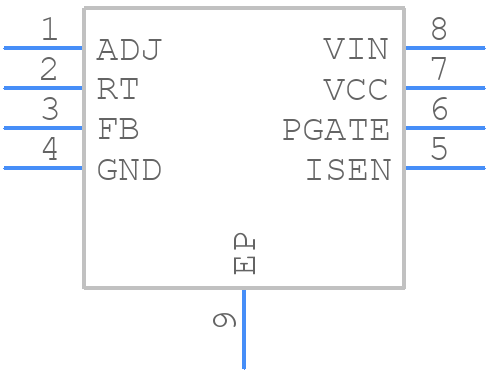

LM25085MYE - Texas Instruments - PCB symbol
