Texas Instruments provides a recommended PCB layout in the LM25117 datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-ounce copper PCB and to keep the thermal pad away from other components to minimize thermal resistance.
To ensure stability, it's essential to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output capacitors properly, and use a low-ESR output capacitor. Also, ensure that the device is operated within its recommended operating conditions, including input voltage, output current, and temperature range.
The maximum output current of the LM25117PSQX/NOPB is 1.5A. However, it's recommended to derate the output current based on the ambient temperature and the device's thermal performance. Refer to the datasheet for more information on output current derating.
The LM25117PSQX/NOPB is rated for operation up to 125°C junction temperature. However, it's essential to ensure that the device is properly cooled, and the thermal design is adequate to prevent overheating. Refer to the datasheet for more information on thermal design and derating.
To troubleshoot issues with the LM25117PSQX/NOPB, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, refer to the datasheet's troubleshooting section or contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25117PSQX/NOPB Overview

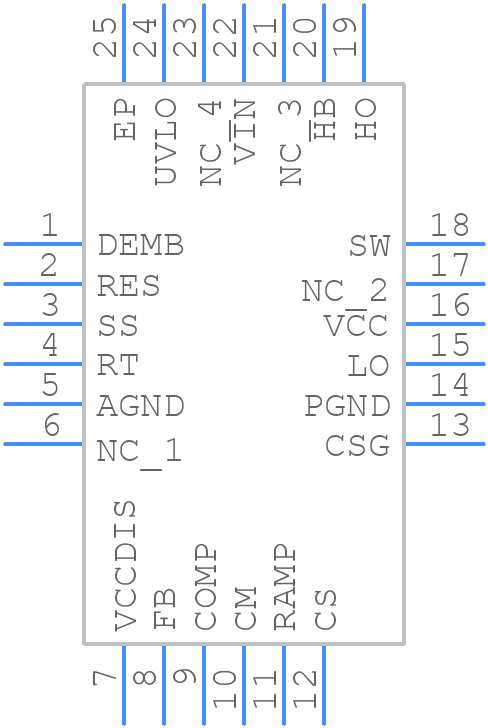

Use the download button to access the LM25117PSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM251,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
