Texas Instruments provides a recommended PCB layout in the LM25117 datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-ounce copper PCB and to keep the thermal pad away from other components to minimize thermal resistance.
To ensure stability, it's essential to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output capacitors properly, and use a low-ESR output capacitor. Also, ensure that the feedback network is properly compensated to prevent oscillation.
Although the datasheet specifies a maximum input voltage of 42V, it's recommended to derate the input voltage to 38V to ensure reliable operation and to prevent damage to the device.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the output capacitor value, ESR, and the switching frequency. The noise is dependent on the switching frequency, output capacitor value, and the input voltage ripple.
A low-ESR ceramic or film capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and should be placed close to the device's input pins to minimize noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25117QPMHX/NOPB Overview

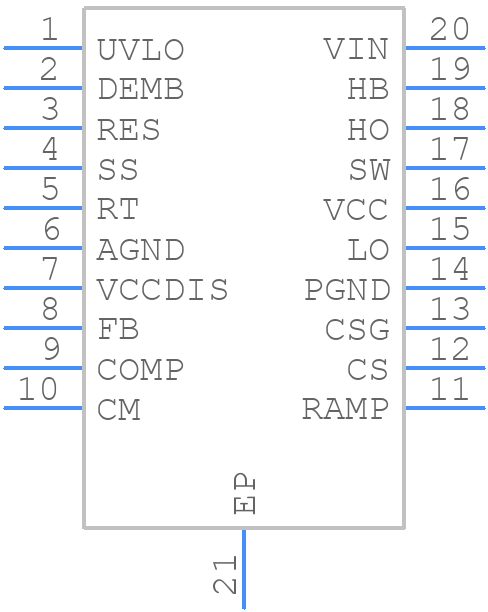

Use the download button to access the LM25117QPMHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM251,
or try a keyword search, such as Switching Regulator or Controllers
