A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is sufficient to filter out noise.
The output voltage accuracy of the LM25118Q1MHX/NOPB is primarily affected by the tolerance of the internal voltage reference, the resistor divider network, and the output voltage sensing circuitry. Ensure that these components are selected with tight tolerances to achieve the desired output voltage accuracy.
To minimize EMI, follow good PCB layout practices, such as separating analog and digital circuits, using a solid ground plane, and minimizing loop areas. Additionally, use shielding, filtering, and decoupling capacitors as needed to reduce EMI emissions.
When designing for thermal performance, consider the device's power dissipation, junction temperature, and thermal resistance. Ensure good thermal conductivity between the device and the heat sink, and consider using thermal interface materials to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25118Q1MHX/NOPB Overview

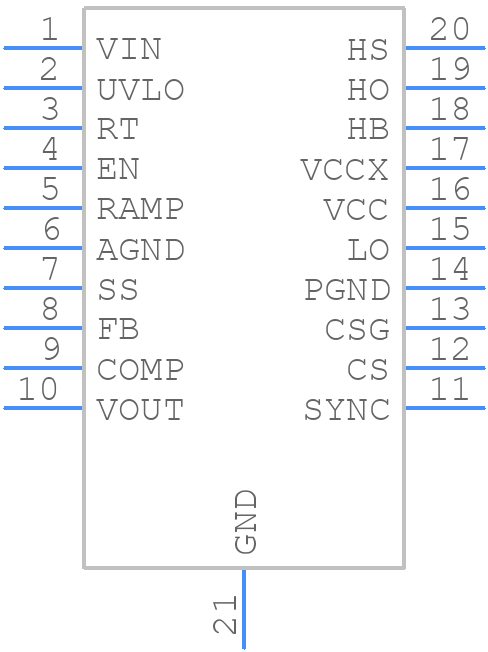

Use the download button to access the LM25118Q1MHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM251,
or try a keyword search, such as Switching Regulator or Controllers
