Texas Instruments provides a recommended PCB layout in the LM25143QRHARQ1 datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure reliable start-up and operation with a wide input voltage range, it's recommended to follow the input voltage sequencing and ramp-up requirements outlined in the datasheet, and to use a suitable input capacitor to filter out noise and ripple.
When selecting the output inductor and capacitor values, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. The datasheet provides guidelines for selecting these components, and TI also offers online tools and calculators to help with the design process.
To optimize the design for low EMI and noise, follow best practices for PCB layout, such as keeping the switching node away from sensitive nodes, using a shielded inductor, and adding EMI filters as needed. Additionally, consider using a spread-spectrum clock or frequency dithering to reduce EMI.
The LM25143QRHARQ1 has a maximum junction temperature of 150°C. For high-temperature operation, derate the device's power dissipation according to the thermal derating curve provided in the datasheet, and ensure that the device is properly heatsinked and cooled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25143QRHARQ1 Overview

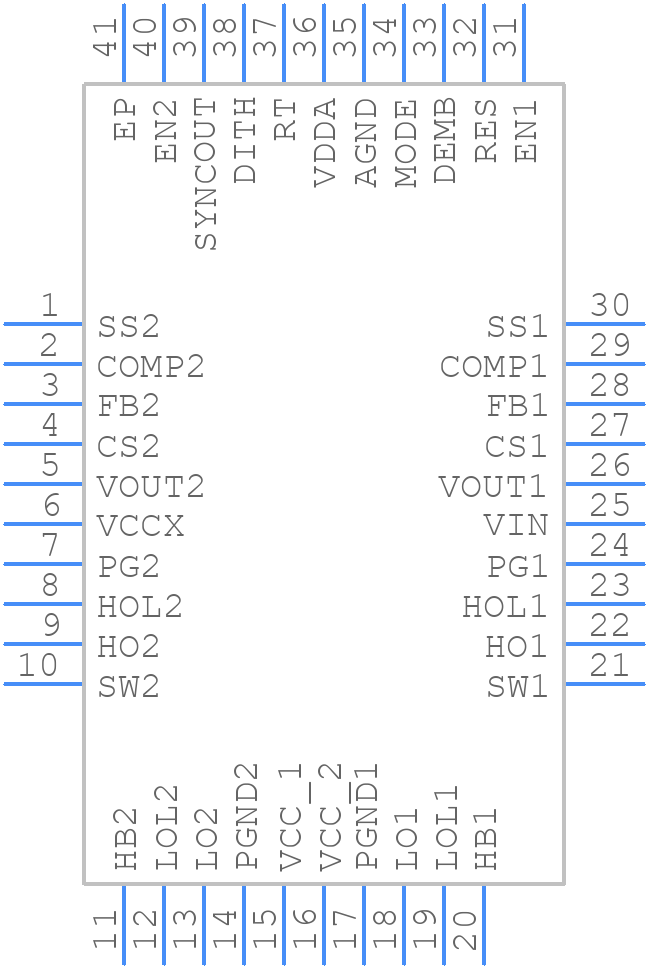

Use the download button to access the LM25143QRHARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM251,
or try a keyword search, such as Switching Regulator or Controllers
