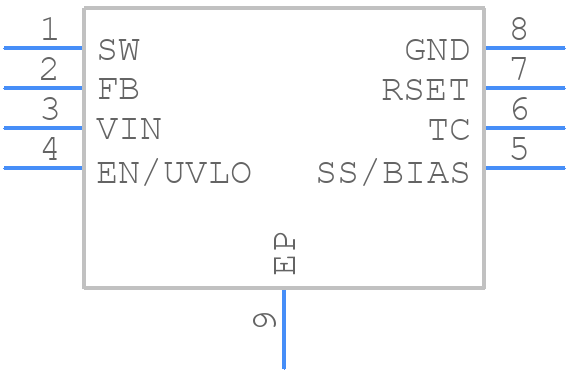

LM25180NGUT - Texas Instruments

LM25180NGUT Details

• Manufacturer Part Number:

  LM25180NGUT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  WSON-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  42 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.65 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK BOOST

• Switching Frequency-Max:

  350 kHz

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
