A good PCB layout for the LM25184NGUR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog nodes.
To optimize the compensation network, start by selecting the desired crossover frequency and phase margin. Then, use the datasheet's compensation network design equations to calculate the required values for R1, R2, C1, and C2. Finally, use simulation tools or empirical methods to fine-tune the values for optimal performance.
The LM25184NGUR is rated for operation from -40°C to 125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider thermal management and derating when operating at high temperatures.
Yes, the LM25184NGUR can be used in a synchronous rectification configuration. This can improve efficiency by reducing the rectifier losses. However, it requires careful design and layout to ensure proper synchronization and to minimize the risk of shoot-through currents.
To ensure accurate and stable output voltage, use a high-precision voltage reference, such as the internal 0.8V reference or an external reference. Additionally, use a low-ESR output capacitor, minimize the output voltage ripple, and ensure the feedback network is properly compensated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25184NGUR Overview

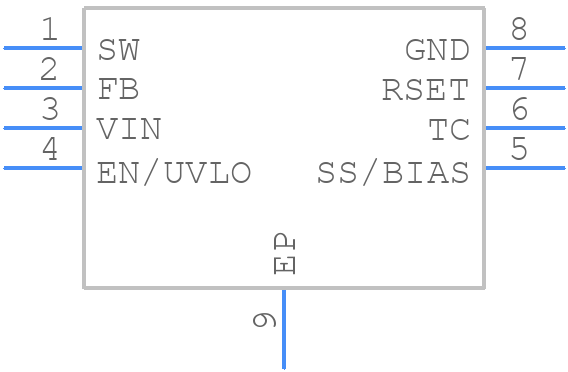

Use the download button to access the LM25184NGUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM251,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
