ALSO HAS ADJUSTABLE OUTPUT VOLTAGE AS LOW AS 1.225V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
42 V
Input Voltage-Min:
6 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e0
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.8 A
Output Voltage-Min:
1.225 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
545 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
LM25574MT Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the LM25574MT evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize noise and EMI.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. TI provides guidelines for capacitor selection in the datasheet and application notes, and online tools such as the TI Capacitor Selection Tool can also be helpful.
While the datasheet specifies an operating junction temperature range of -40°C to 125°C, the maximum ambient temperature range for reliable operation depends on the specific application and thermal management. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal stress.
To ensure EMC in your design, follow best practices for PCB layout, component selection, and shielding. TI provides guidelines for EMC in the datasheet and application notes, and online resources such as the TI EMC Guide can also be helpful. Additionally, consider using a shielded inductor and following proper grounding and decoupling techniques.
The recommended input voltage range for optimal efficiency depends on the specific application and output voltage requirements. In general, operating the LM25574MT near the nominal input voltage range of 4.5V to 18V can help ensure optimal efficiency. However, the device can operate with input voltages as low as 3.5V and as high as 20V, depending on the specific requirements of your application.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM25574MT Overview

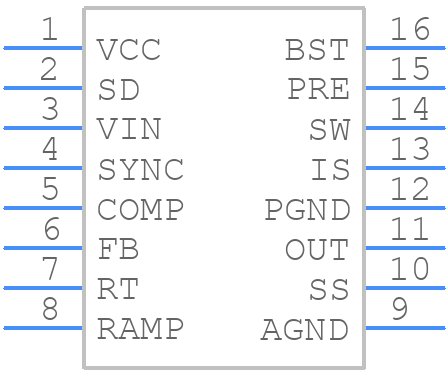

Use the download button to access the LM25574MT schematic symbol, PCB footprint, and 3D model.
