LM25574MTX/NOPB - Texas Instruments

Description: SIMPLE SWITCHER® 42V, 0.5A Step-Down Switching Regulator

Download LM25574MTX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

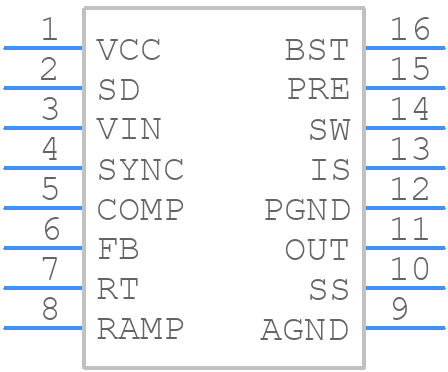

LM25574MTX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM25574MTX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
LM25574MTX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

LM25574MTX/NOPB Details

  • Manufacturer Part Number:

    LM25574MTX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    1.23 V

  • Output Voltage-Nom:

    7.15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM25574MTX/NOPB Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure the LM25574MTX/NOPB operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating conditions specified in the datasheet. Additionally, ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating.
  • The maximum output current capability of the LM25574MTX/NOPB is 5A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal design of the system.
  • The output voltage of the LM25574MTX/NOPB can be adjusted by using a resistive divider network between the output voltage sense pin and the ground pin. The output voltage can be calculated using the formula: Vout = 1.25V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The enable pin on the LM25574MTX/NOPB is used to turn the device on or off. When the enable pin is pulled high, the device is enabled and operates normally. When the enable pin is pulled low, the device is disabled and the output voltage is turned off.
