Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The LM25574QMTX/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value depends on the input voltage and output current requirements, but a typical value is 10uF to 22uF. Refer to the datasheet for more information on input capacitor selection.
Start by verifying the input voltage, output voltage, and output current are within the recommended operating ranges. Check the PCB layout for any issues, such as poor grounding or inadequate decoupling. Use an oscilloscope to measure the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, the LM25574QMTX/NOPB is compatible with lead-free soldering processes, such as SAC305 (Sn-Ag-Cu) or other lead-free solder alloys. However, ensure that the soldering process follows the recommended temperature profile and handling guidelines to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25574QMTX/NOPB Overview

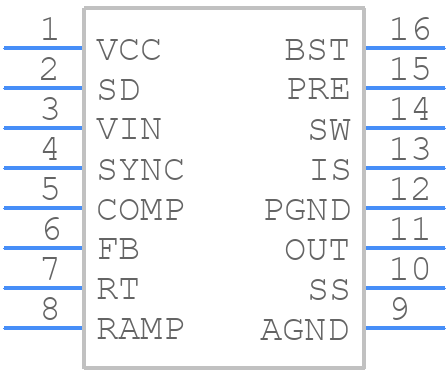

Use the download button to access the LM25574QMTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM255,
or try a keyword search, such as Switching Regulator or Controllers
