Texas Instruments provides a recommended PCB layout in the LM25575QMHX/NOPB datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes using a heat sink, ensuring good airflow, and keeping the device within its recommended operating temperature range. Additionally, consider using thermal interface materials and conformal coatings to improve thermal performance.
Using a different input capacitor value than recommended may affect the regulator's stability, transient response, and output voltage ripple. A larger input capacitor can improve transient response but may increase startup time, while a smaller capacitor can reduce startup time but may compromise transient response. It's essential to evaluate the impact of different input capacitor values on the regulator's performance.
To troubleshoot output voltage deviations or instability, check the input voltage, output load, and PCB layout for any issues. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout follows the recommended guidelines. Also, verify that the output capacitor value and ESR are within the recommended specifications.
The LM25575QMHX/NOPB is designed to minimize EMI and RFI emissions. However, it's still essential to follow proper PCB layout and design guidelines to reduce emissions. This includes using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, ensure that the device is operated within its recommended frequency range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25575QMHX/NOPB Overview

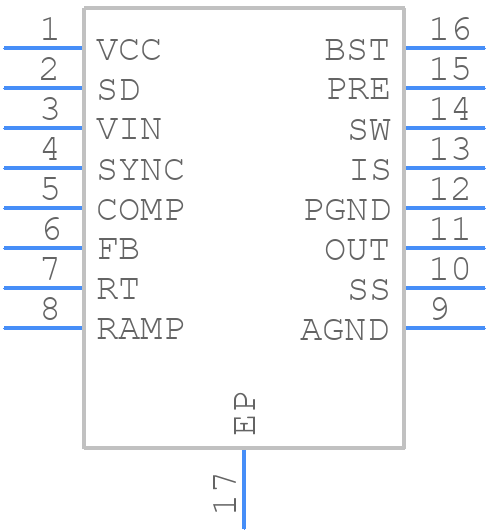

Use the download button to access the LM25575QMHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM255,
or try a keyword search, such as Switching Regulator or Controllers
