LM25576MHX - Texas Instruments

Description: DC-DC Converters Step-Down Adjustable 1 6V 42V 1.225V 40V 3A HTSSOP-20 RoHS

Download LM25576MHX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

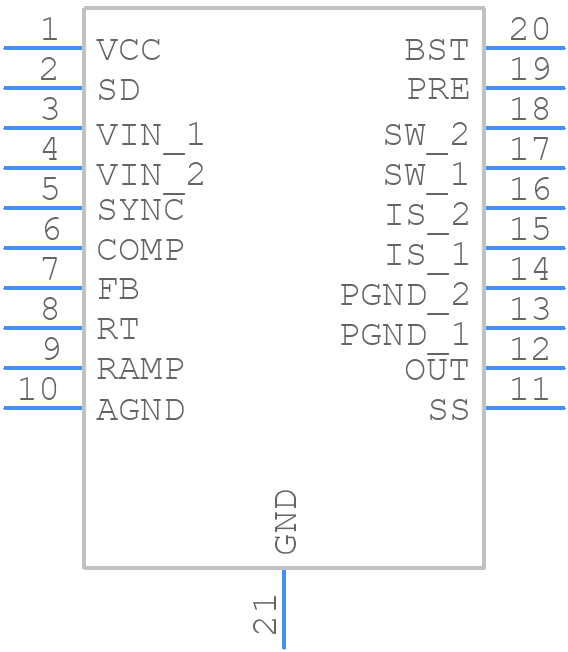

LM25576MHX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM25576MHX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP00020A
click to zoom
3D Models
LM25576MHX - Texas Instruments - 3D model - Small Outline Packages - PWP00020A
click to zoom

LM25576MHX Details

  • Manufacturer Part Number:

    LM25576MHX

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO HAS ADJUSTABLE OUTPUT VOLTAGE AS LOW AS 1.225V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e0

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    1.23 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LM25576MHX Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. However, the optimal value may vary depending on the specific application and input voltage ripple requirements.
  • To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a low-ESR output capacitor, and add a 10nF to 22nF capacitor between the VCC pin and GND. Additionally, ensure that the input voltage is within the recommended range and the output is properly decoupled.
  • The LM25576MHX can deliver up to 5A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
  • The LM25576MHX is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended thermal design guidelines and ensure proper heat sinking to maintain a safe operating temperature.
  • To protect the device from input voltage transients and surges, it's recommended to add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help absorb or clamp voltage spikes and prevent damage to the device.
