LM2574-5.0YN - Microchip

Description: Microchip LM2574-5.0YN, Step Down DC-DC Converter, 500mA, 8-Pin PDIP

Download LM2574-5.0YN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

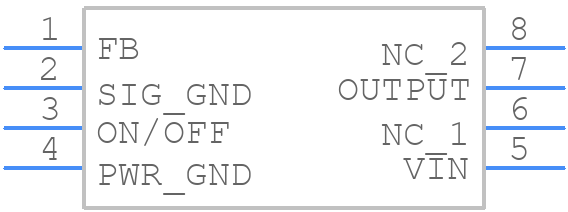

LM2574-5.0YN - Microchip - PCB symbol
click to zoom
PCB Footprints
LM2574-5.0YN - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP (N)
click to zoom
3D Models
LM2574-5.0YN - Microchip - 3D model - Dual-In-Line Packages - 8-Pin DIP (N)
click to zoom

LM2574-5.0YN Details

  • Manufacturer Part Number:

    LM2574-5.0YN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.525 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    63 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM2574-5.0YN Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2574-5.0YN is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of less than 1 ohm. Additionally, the output voltage can be further stabilized by adding a 10nF capacitor between the output and ground.
  • The maximum output current that the LM2574-5.0YN can provide is 3A. Exceeding this current can cause the device to overheat and potentially fail.
  • The input capacitor value can be calculated using the following formula: Cin = (Iout x ΔI) / (f x ΔV), where Cin is the input capacitance, Iout is the output current, ΔI is the input ripple current, f is the switching frequency, and ΔV is the input voltage ripple.
  • The feedback pin is used to regulate the output voltage. It is connected to a resistive divider network that sets the output voltage. The feedback pin is also used to monitor the output voltage and adjust the switching frequency to maintain a stable output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2574-5.0YN Overview

Use the download button to access the LM2574-5.0YN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM257, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
