LM2575HVT-3.3/NOPB - Texas Instruments

Description: SIMPLE SWITCHER 1A Step-Down Voltage Regulator

Download LM2575HVT-3.3/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

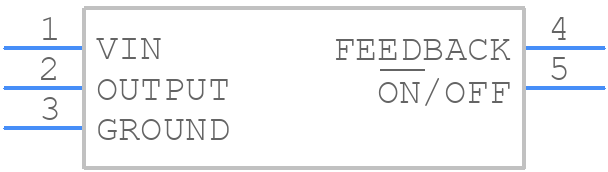

Symbol
LM2575HVT-3.3/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2575HVT-3.3/NOPB - Texas Instruments PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - KC0005A1
click to zoom
3D Models
LM2575HVT-3.3/NOPB - Texas Instruments - 3D model - Transistor Outline, Vertical - KC0005A1
click to zoom

LM2575HVT-3.3/NOPB Details

  • Manufacturer Part Number:

    LM2575HVT-3.3/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSFM-T5

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    57 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    16.51 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    63 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Width:

    4.445 mm

LM2575HVT-3.3/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2575HVT-3.3/NOPB is 60V. However, it's recommended to keep the input voltage below 50V for reliable operation.
  • The LM2575HVT-3.3/NOPB is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation.
  • To ensure stability, make sure to use the recommended output capacitor value and type, and keep the input and output capacitors close to the IC. Also, ensure that the PCB layout is well-designed and follows good practices for switching regulators.
  • The LM2575HVT-3.3/NOPB has a minimum input voltage of 7V, so it's not suitable for low-input-voltage applications. For applications with input voltages below 7V, consider using a different regulator or a boost converter.
  • The output voltage ripple of the LM2575HVT-3.3/NOPB can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2575HVT-3.3/NOPB Overview

Use the download button to access the LM2575HVT-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM257, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
