The maximum input voltage that can be applied to the LM2575T-12/LF03 is 40V, but it's recommended to keep it below 35V for reliable operation.
The LM2575T-12/LF03 has a maximum operating junction temperature of 125°C, but it's recommended to keep it below 85°C for reliable operation. Above 85°C, the regulator's performance may degrade, and it may shut down to prevent overheating.
To ensure stability, make sure to use the recommended output capacitor (at least 22uF, low ESR) and input capacitor (at least 10uF, low ESR). Also, keep the output capacitor close to the regulator and use a low-inductance layout to minimize parasitic inductance.
The LM2575T-12/LF03 has a maximum output current of 1A, but it's recommended to keep the output current below 0.8A for reliable operation. If you need to power a high-current load, consider using a different regulator or adding an external pass transistor to increase the current capability.
The output voltage ripple of the LM2575T-12/LF03 can be calculated using the formula: ΔVout = (Iout * Rload) / (fsw * Cout), where Iout is the output current, Rload is the load resistance, fsw is the switching frequency (52kHz for the LM2575T-12/LF03), and Cout is the output capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2575T-12/LF03 Overview

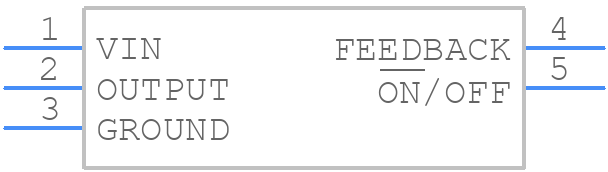

Use the download button to access the LM2575T-12/LF03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM257,
or try a keyword search, such as Switching Regulator or Controllers
