LM2575T-5.0/LF03 - Texas Instruments

Description: SIMPLE SWITCHER 1A Step-Down Voltage Regulator

Download LM2575T-5.0/LF03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

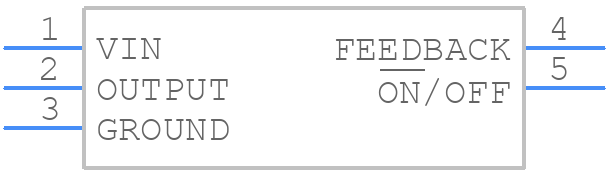

Symbol
LM2575T-5.0/LF03 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2575T-5.0/LF03 - Texas Instruments PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - NDH0005D
click to zoom
3D Models
LM2575T-5.0/LF03 - Texas Instruments - 3D model - Transistor Outline, Vertical - NDH0005D
click to zoom

LM2575T-5.0/LF03 Details

  • Manufacturer Part Number:

    LM2575T-5.0/LF03

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XZFM-T5

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    63 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.57 mm

LM2575T-5.0/LF03 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2575T-5.0/LF03 is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1 ohm or less, and to keep the output voltage sense lines as short as possible.
  • The feedback pin (FB) is used to regulate the output voltage. Connect the FB pin to the output voltage through a resistive divider network to set the desired output voltage.
  • The LM2575T-5.0/LF03 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout x ESR) / (f x Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and Cout is the output capacitance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2575T-5.0/LF03 Overview

Use the download button to access the LM2575T-5.0/LF03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM257, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
