LM2575TV-ADJG - onsemi

Description: 3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions; Adjustable Version Output Voltage Range of 1.23 V to 37 V +/-4% Maximum Over Line and Load Conditions; Guaranteed 1.0 A Output Current; Wide Input Voltage Range: 4.75 V to 40 V; Requires Only 4 External Components; 52 kHz Fixed Frequency Internal Oscillator; TTL Shutdown Capability, Low Power Standby Mode; High Efficiency; Uses Readily Available Standard Inductors; Thermal Shutdown and Current Limit Protection; Moisture Sensitivity Level (MSL) Equals

Download LM2575TV-ADJG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

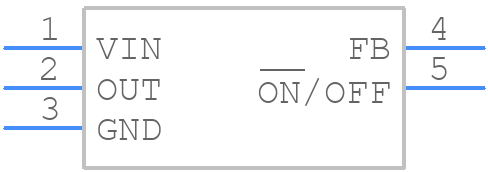

LM2575TV-ADJG - onsemi - PCB symbol
click to zoom
PCB Footprints

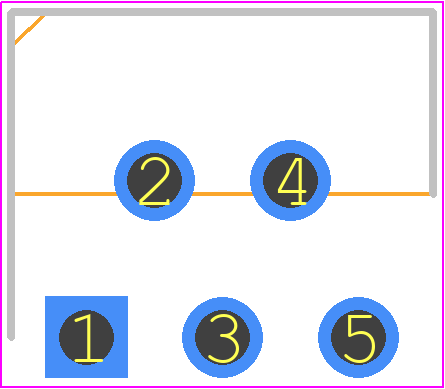

LM2575TV-ADJG - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220 TV SUFFIX CASE 314B-05
click to zoom
3D Models
LM2575TV-ADJG - onsemi - 3D model - Transistor Outline, Vertical - TO-220 TV SUFFIX CASE 314B-05
click to zoom

LM2575TV-ADJG Details

  • Manufacturer Part Number:

    LM2575TV-ADJG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-220 5 LEAD OFFSET

  • Pin Count:

    5

  • Manufacturer Package Code:

    314B-05

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.2

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.23 TO 37 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XZFM-T5

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    1.23 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP5,.15,.2,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    63 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

LM2575TV-ADJG Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2575TV-ADJG is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure the output voltage is stable and regulated, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 22uF. Also, ensure that the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The minimum input voltage required for the LM2575TV-ADJG to operate is 7V. However, the device can operate with an input voltage as low as 3V, but the output voltage regulation may not be guaranteed.
  • The LM2575TV-ADJG is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to ensure reliable operation.
  • The output voltage of the LM2575TV-ADJG can be adjusted by using a resistive divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 1.23 x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
