The maximum input voltage that can be applied to the LM2576T-5.0/LB03 is 40V, but it's recommended to keep it below 35V for reliable operation.
The LM2576T-5.0/LB03 has a maximum operating junction temperature of 125°C, but it's recommended to keep it below 85°C for reliable operation. You can use thermal management techniques like heat sinks or thermal interfaces to reduce the temperature.
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 22uF. Also, ensure that the input capacitor is properly sized and placed close to the IC.
The LM2576T-5.0/LB03 is a switching regulator, and it can generate switching noise. To minimize the noise, use a suitable layout, keep the input and output capacitors close to the IC, and use a shielded inductor. You can also add a noise filter or a ferrite bead to the output to reduce the noise.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (fsw * Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, fsw is the switching frequency, and Cout is the output capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2576T-5.0/LB03 Overview

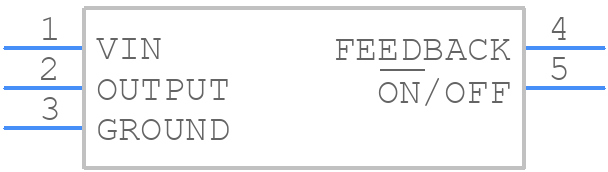

Use the download button to access the LM2576T-5.0/LB03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM257,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
