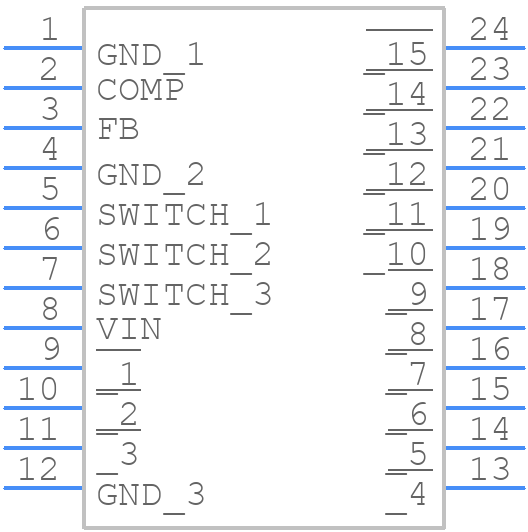

LM2577M-ADJ - Texas Instruments

LM2577M-ADJ Details

• Manufacturer Part Number:

  LM2577M-ADJ

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SOIC

• Package Description:

  SOP, SOP24,.4

• Pin Count:

  24

• Reach Compliance Code:

  Compliant

• Manufacturer:

  Texas Instruments

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  3.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e0

• Length:

  15.4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6 A

• Output Voltage-Nom:

  1.23 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Subcategory:

  Switching Regulator or Controllers

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  62 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5 mm
