LM2578AN - Texas Instruments

Description: Switching Voltage Regulators Switching Regulator 8-PDIP -40 to 125

Download LM2578AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

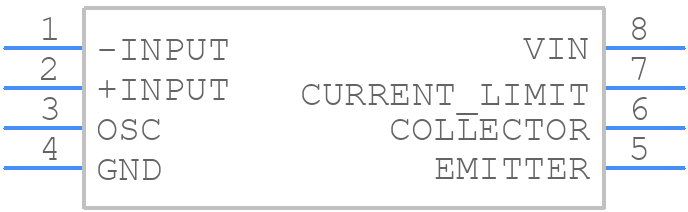

Symbol
LM2578AN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2578AN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP_8-
click to zoom
3D Models
LM2578AN - Texas Instruments - 3D model - Dual-In-Line Packages - DIP_8-
click to zoom

LM2578AN Details

  • Manufacturer Part Number:

    LM2578AN

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.59 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.75 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    100 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM2578AN Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2578AN is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The LM2578AN is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 33μH for the LM2578AN-5.0). You can also use online inductor selection tools or consult with a TI engineer for specific guidance.
  • The minimum input capacitance required for stable operation is 10μF, but it's recommended to use a higher value (e.g., 22μF) to ensure stable operation and reduce input voltage ripple.
  • No, the LM2578AN is a switching regulator and not suitable for LDO applications. It requires a minimum input-to-output voltage difference (VIN - VOUT) of around 2.5V to maintain regulation.
