LM2585T-12 - Texas Instruments

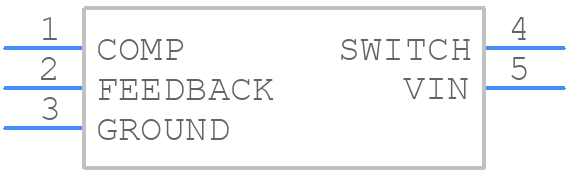

LM2585T-12 Details

• Manufacturer Part Number:

  LM2585T-12

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Package Description:

  BENT STAGGERED, TO-220, 5 PIN

• Pin Count:

  3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  4 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PZFM-T5

• JESD-609 Code:

  e0

• Length:

  14.986 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  7 A

• Output Voltage-Max:

  12.6 V

• Output Voltage-Min:

  11.52 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  ZFM

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Seated Height-Max:

  4.7 mm

• Supply Current-Max (Isup):

  3 mA

• Surface Mount:

  NO

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  125 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.702 mm

• Terminal Position:

  SINGLE

• Width:

  10.16 mm
