LM2587T-12/NOPB - Texas Instruments

Description: Texas Instruments LM2587T-12/NOPB, Boost Converter, Step Up, 12, 115 kHz, 5-Pin TO-220

Download LM2587T-12/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

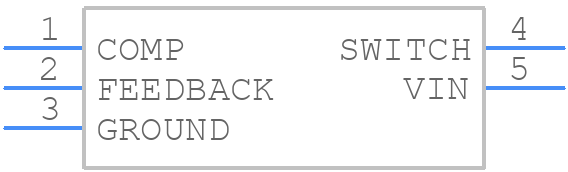

LM2587T-12/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2587T-12/NOPB - Texas Instruments PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - NDH0005D_2
click to zoom
3D Models
LM2587T-12/NOPB - Texas Instruments - 3D model - Transistor Outline, Vertical - NDH0005D_2
click to zoom

LM2587T-12/NOPB Details

  • Manufacturer Part Number:

    LM2587T-12/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSFM-T5

  • JESD-609 Code:

    e3

  • Length:

    14.986 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    60 V

  • Output Voltage-Min:

    1.23 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Supply Current-Max (Isup):

    16.5 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    115 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Width:

    10.16 mm

LM2587T-12/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2587T-12/NOPB is 40V. However, it's recommended to operate the device within the specified input voltage range of 7V to 40V for optimal performance and reliability.
  • The LM2587T-12/NOPB is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet.
  • To ensure the stability of the LM2587T-12/NOPB output voltage, it's recommended to use a minimum output capacitance of 10uF with an ESR of less than 5 ohms. Additionally, the output voltage should be decoupled from the input voltage using a capacitor with a value of at least 1uF.
  • Yes, the LM2587T-12/NOPB can be used in a switching power supply application. However, it's recommended to ensure that the input voltage is well-filtered and the device is operated within its specified frequency range of 100kHz to 500kHz.
  • The power dissipation of the LM2587T-12/NOPB can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
