LM2594MX-3.3 - Texas Instruments

Description: Switching Voltage Regulators

Download LM2594MX-3.3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

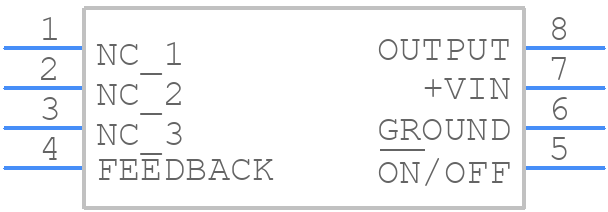

LM2594MX-3.3 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2594MX-3.3 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM2594MX-3.3 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM2594MX-3.3 Details

  • Manufacturer Part Number:

    LM2594MX-3.3

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.4 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    173 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.9 mm

LM2594MX-3.3 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2594MX-3.3 is 40V, but it's recommended to keep it below 37V to ensure reliable operation and to prevent damage to the internal circuitry.
  • While the LM2594MX-3.3 can deliver up to 3A of output current, it's not recommended for high-current applications. The device has a thermal shutdown feature that will activate if the junction temperature exceeds 150°C, which can happen if the output current is too high. For high-current applications, consider using a more suitable regulator or adding additional heat sinking.
  • To ensure the output voltage is accurate and stable, make sure to use a stable input voltage, choose the correct output capacitor value and type, and minimize noise and ripple on the input and output lines. Also, ensure that the device is operated within its recommended operating conditions and that the thermal dissipation is adequate.
  • Yes, the LM2594MX-3.3 is a switching regulator and can be used in an SMPS design. However, it's essential to follow proper design guidelines and layout practices to minimize electromagnetic interference (EMI) and ensure reliable operation.
